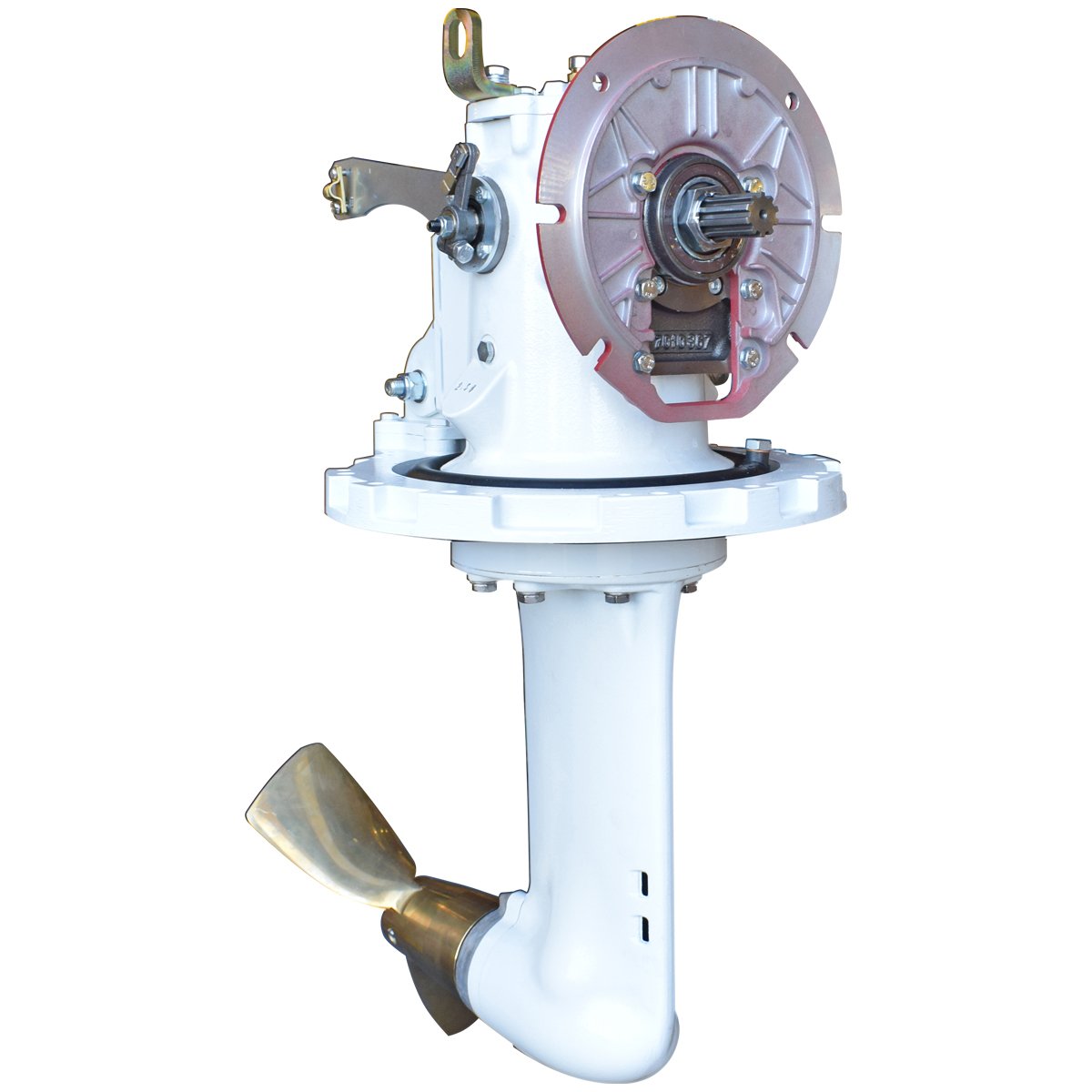

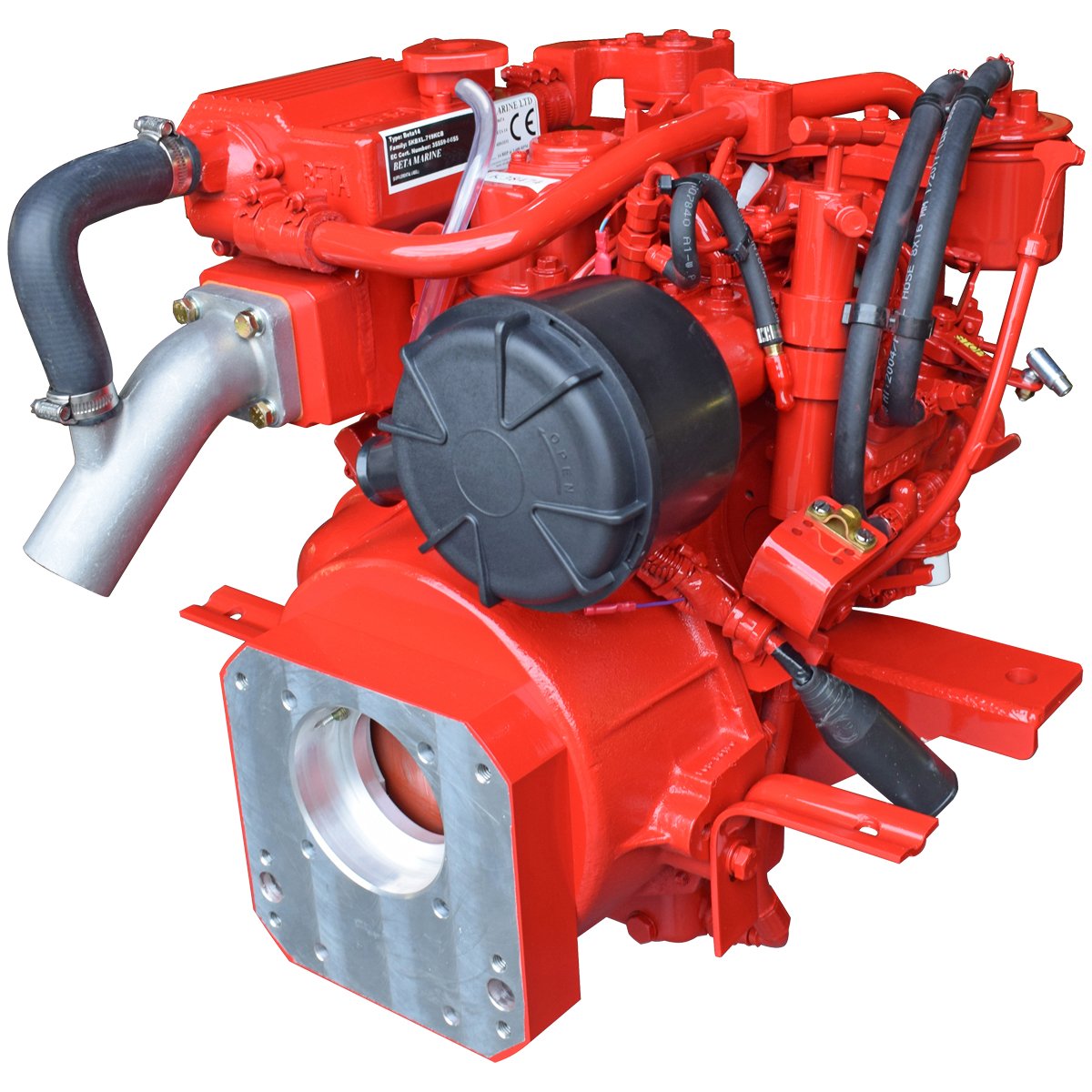

Beta 14 Saildrive

Marka: Beta Marine

Silindir Adeti: 2

Hacim: 479 CC

Güç: 13.5 hp @ 3600 rpm

Ağırlık: 81 KG

Ürün Durumu: Sıfır

Stok Durumu:

Standart Özellikler
Şanzıman Seçenekleri ve Teknik Çizimler
Kontrol Paneli Opsiyonları
Elektrik Seçenekleri
Sığ Karter Seçenekleri
Özel Servis Sehpası
Aksesuarlar
Literatür & Kılavuzlar

Standard Specifications

RCD 2 (Recreational Craft Directive 2013/53/EU) exhaust emission compliant.
EPA (U.S Environmental Protection Agency) Tier III – 40 CFR 1042 exhaust emission compliant. Note: Extra charges apply and this must be specified at time of order.
Mechanically governed comes with:
- Heat exchanger, header tank and water cooled exhaust manifold.
- Fresh and sea water pump, injection bend for a wet exhaust.
- Mechanical fuel lift pump, fuel and oil filtration.
- Flywheel housing and drive plate with heavy inertia ring for super smooth running at low rpm.
- Special quiet air intake filter.
- Shallow sump.
40 Amp, 12 Volt battery charging alternator.
Complete with ‘ABV’ control panel with tachometer with running hour recorder, keystart switch, push button stop, green light for ‘power on’, red warning lights and audible alarm for: low oil pressure, high water temperature, domestic and engine alternators ‘no charge; 3m interconnection cable with multi pin plug connector.
Heavy duty engine feet and flexible mountings.
‘Morse’ type end fittings for engine speed and gearbox control.
Engine test certificate and operators manual.
Beta red paint.

Şanzıman Seçenekleri ve Teknik Çizimler

Beta Marine offer the following standard gearbox options and reduction ratios. Gearboxes have been selected to match the torque loading of each engine and will be correct for the majority of yachts, motor sailors or motor boats.

Bobtail – No Gearbox
Bobtail Engine with Drive Plate & Housing Only	Standard

Technodrive / Twin Disc
TMC40 – Mechanical	Standard
TMC60 – Mechanical	Optional
TMC60A – 7° Down Angle, Mechanical	Standard

PRM Marine
PRM90 – Mechanical	Standard
PRM125 – Mechanical	Optional
PRM150 – Hydraulic	Standard
PRM280 – Hydraulic	Optional
PRM260C – In-line Hydraulic	Optional

ZF
ZF15MIV – 15° V Drive, Mechanical	Standard

Kontrol Paneli Opsiyonları

A Panel
Standard

ABV Panel
Standard

ABVW Panel
Standard

B Panel
Standard

BW Panel
Standard

ABV, ABVW, B & BW Panel Spray
Resistant Recess Box
Standard

C Deluxe Panel
Standard

CW Deluxe Panel
Standard

C Deluxe & CW Deluxe Panel Spray
Resistant Recess Box
Standard

Flybridge Control
Standard

C/CW Panel – NMEA 2000 Module
Standard

D Digital Panel
Standard

Elektrik Seçenekleri

Note: Minimum recommended battery: Not included.

12v 70Ah 450CCA

12 Volt Alternators
40 Amp, 12 Volt Alternator	Standard
75 Amp, 12 Volt Alternator in Lieu of Standard	Optional
125 Amp, 12 Volt Split Charging System	Optional

Shallow Sump Options

For vessels with very limited space between the engine, bearers and hull we can offer a specially designed shallow sump option. The key differences are a reshaped sump pan and repositioning of the sump pump connection.

Oil volumes are marginally reduced (please refer to relevant operators manual) but the dip stick calibration is unchanged. However when this option is fitted, it is important to note that the frequency of the oil change period is reduced. Rather than the standard oil change hours of use, engines fitted with a shallow sump require an initial change after 50 hours then either annually or every 150 hours if sooner.

Special Feet Service

Beta Marine engines have been fitted into tens of thousands of vessels around the world using our standard engine feet. However engine bearers can vary immensely so when a problem arises, our solution is to offer our unique service of designing and manufacturing “Special Engine Feet” to suit your individual engine bearers.

Having designed, manufactured and supplied thousands of bespoke “Special Feet” when required, the additional cost of this option is heavily repaid when your new engine just drops onto your existing engine bearers and lines up with your propeller shaft reducing installation complexity, time and labour.

Aksesuarlar

Beta Marine seagoing propulsion engines are complemented by a complete range of installation accessories.

Literatür & Kılavuzlar

Beta 28 & Beta 30
Illustrated Parts List
